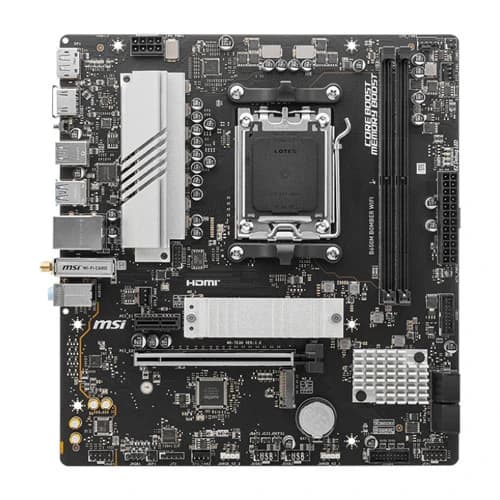

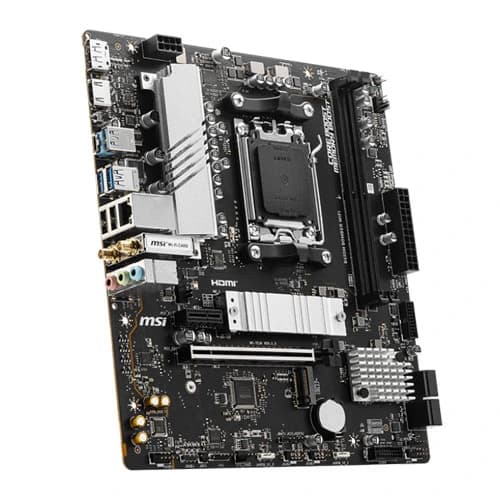

MSI B650M Bomber WIFI M-ATX Motherboard

Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps

M.2 Shield FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Lightning Gen4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Motherboard

Platform
AMD

Socket
AM5

Cpu Type
Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset
B650

Memory Speed
up to 7800+

Max Memory Support
128 GB

Supported Memory Type
DDR5

Channel Supported
Dual Channel

Memory Feature
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Graphics Port
1x HDMI,1x DisplayPort

Expansion Slots
1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

Wireless Networking
WiFi 6E,Bluetooth 5.3

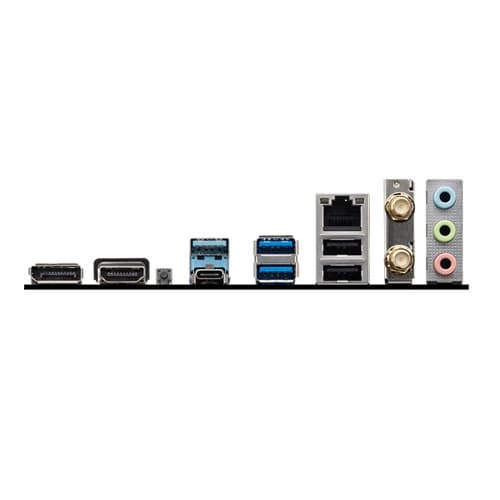

Back Panel I/O Ports
DisplayPort
HDMI™
Flash BIOS Button
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
USB 5Gbps Type-C
USB 2.0

Internal I/O Connector
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

Form Factor
Micro-ATX

Warranty
3 Years

Note
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
