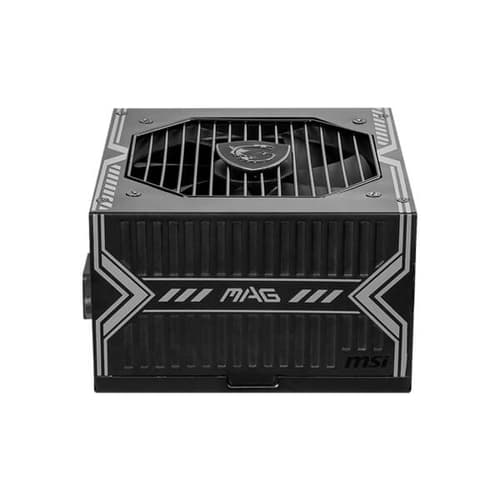

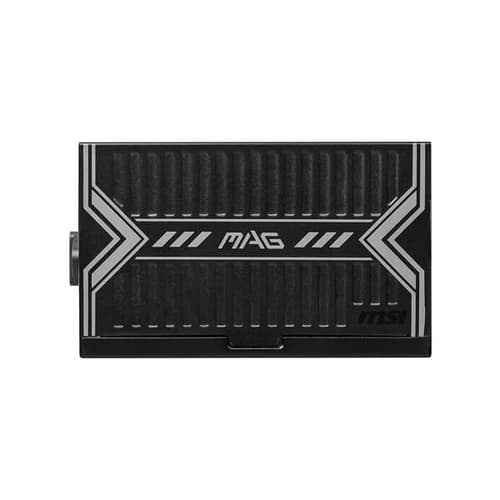

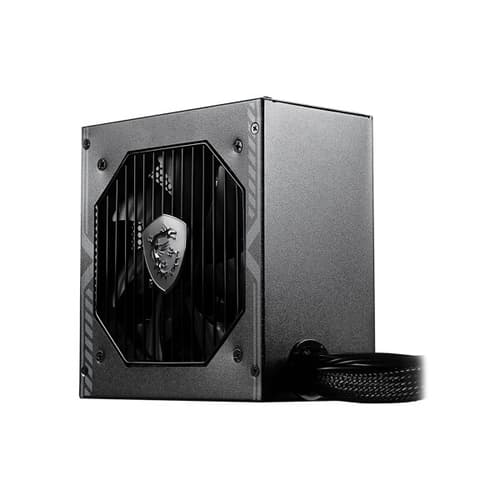

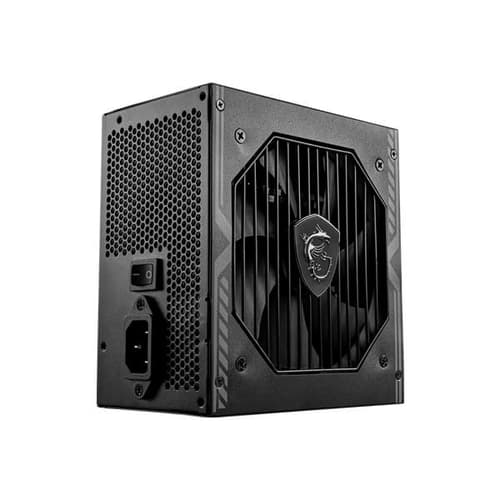

MSI MAG A750BN PCIE5 750 Watt 80 Plus Bronze SMPS

Features:

• PCIe 5.0 Ready (300W)
• 120mm Fan
• DC to DC power Design
• Active PFC Design
• Industrial level protection with OVP, OCP, SCP, OPP, OTP

Specification:

Model
MAG A750BN PCIE5

Efficiency Rating
80 PLUS Bronze (up to 85%)

Modular
No

Fan Size
120 mm

Fan Bearing
Sleeve Bearing

Dimensions (DxWxH)
140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches

PFC Type
Active PFC

Input Voltage Range
100-240~

Power Watt
750W

Input Frequency Range
50~60Hz

Protection
OCP, OVP, OPP, OTP, SCP

ATX (24 pin)
1

EPS (4+4 pin)
2

PCI-E 5.0 (16 pin)
1(300W)

PCI-E (6+2 pin)
2

SATA (15 pin)
5

MOLEX (4 pin)
2

FDD (4 pin)
1

Warranty
5 Years

Note
*** Image use for reference only

*** Features, Price, Specifications are subject to change without notice.
