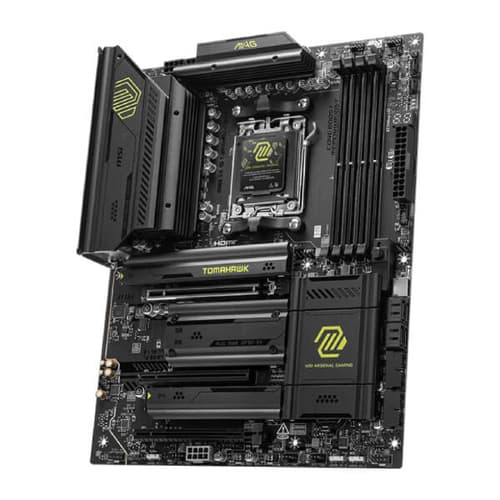

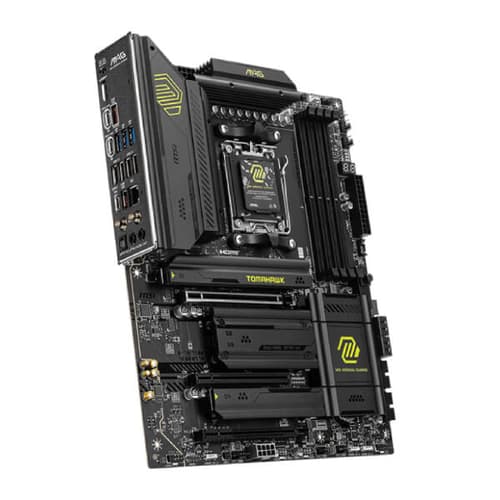

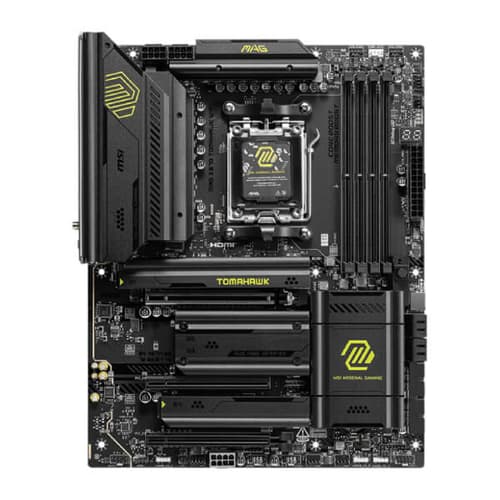

MSI MAG X870 Tomahawk WIFI ATX Motherboard

Features:

• upports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Motherboard

Platform
AMD

Socket
AM5

Cpu Type
Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset
X870

Memory Speed
up to 8400+

Max Memory Support
256 GB

Supported Memory Type
DDR5

Channel Supported
Dual Channel

Memory Feature
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Graphics Port
1x HDMI,2x Type-C DisplayPort

Expansion Slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Wireless Networking
WiFi 7,Bluetooth 5.4

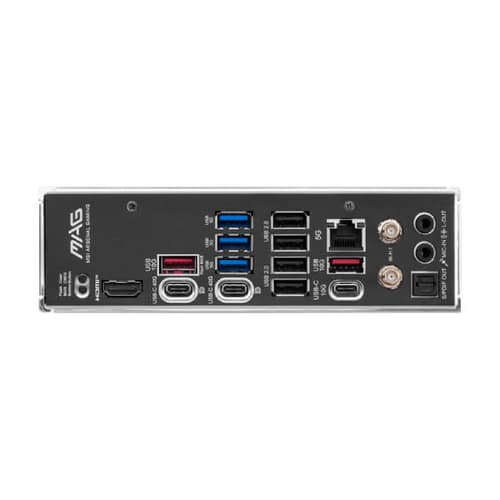

Back Panel I/O Ports
Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A

Internal I/O Connector
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Form Factor
ATX

Warranty
3 Years
