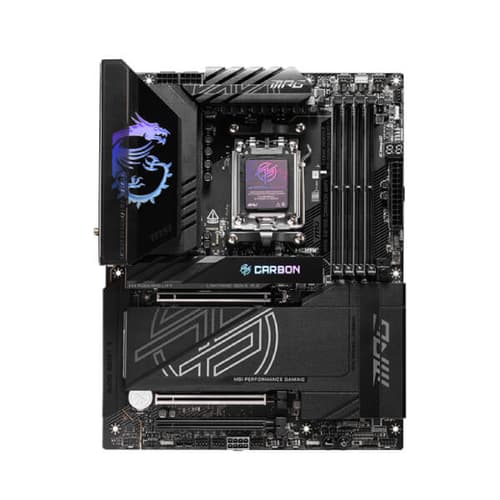

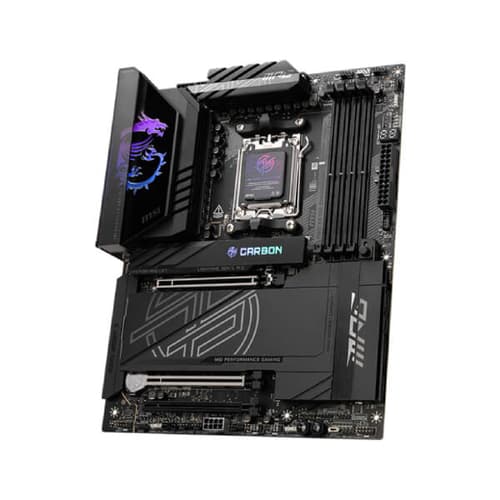

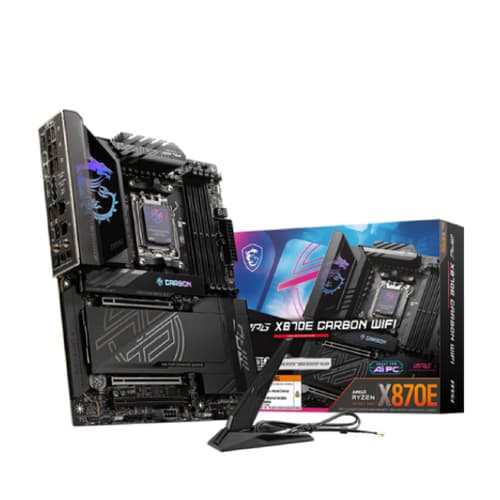

MSI MPG X870E Carbon WIFI ATX Motherboard

Features:

MPG X870E CARBON WIFI

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Motherboard

Platform
AMD

Socket
AM5

Cpu Type
Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset
X870E

Memory Speed
up to 8400+

Max Memory Support
256 GB

Supported Memory Type
DDR5

Channel Supported
Dual Channel

Memory Feature
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

Graphics Port
1x HDMI,2x Type-C DisplayPort

Expansion Slots
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

Wireless Networking
WiFi 7,Bluetooth 5.4

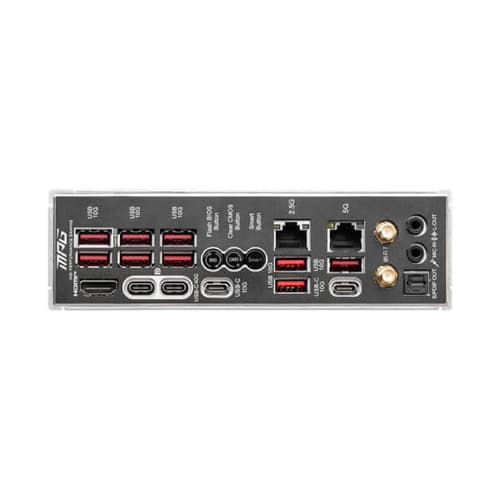

Back Panel I/O Ports
USB 10Gbps Type-A
Flash BIOS Button
Clear CMOS Button
Smart Button
2.5G LAN
5G LAN
Audio Connectors
HDMI
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out

Internal I/O Connector
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Form Factor
ATX

Warranty
3 Years

Note
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
