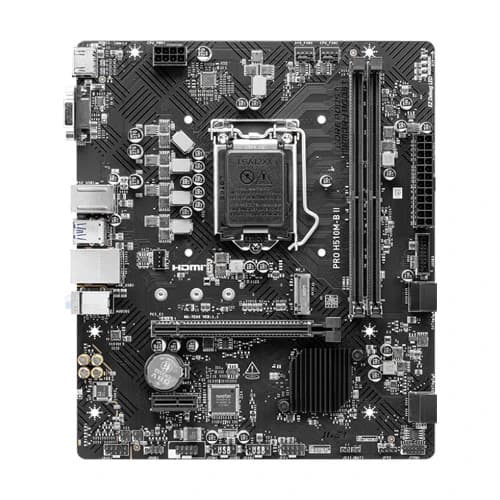

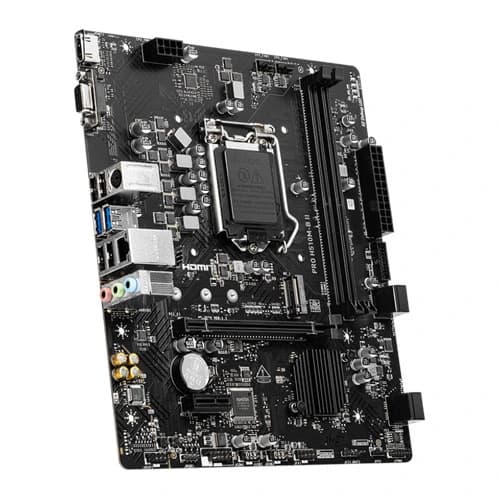

MSI Pro H510M-B II M-ATX Motherboard

Features:

• Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933MHz (MAX)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Motherboard

Platform
INTEL

Socket
LGA1200

Cpu Type
10th Gen,Pentium

Chipset
H510

Memory Speed
up to 2933

Max Memory Support
64 GB

Supported Memory Type
DDR4

Channel Supported
Dual Channel

Memory Feature
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Graphics Port
1x HDMI,1x VGA

Expansion Slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

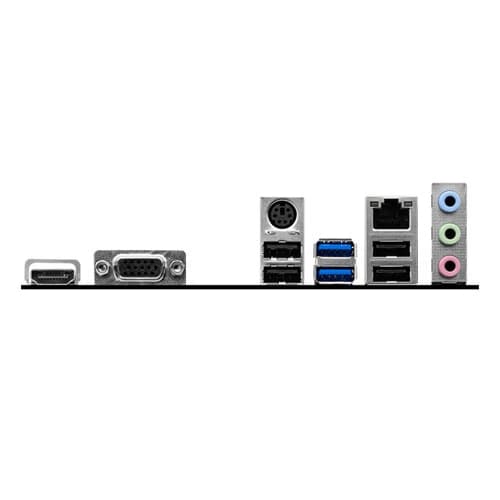

Back Panel I/O Ports
HDMI™
VGA
Keyboard / Mouse
USB 5Gbps Type-A
LAN port
Audio Connectors
USB 2.0
USB 2.0

Internal I/O Connector
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

Form Factor
Micro-ATX

Warranty
3 Years

Note
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
