Product Description:
Model
Synology DiskStation DS925+
CPU
CPU Model
AMD Ryzen V1500B
CPU Architecture
64-bit
CPU Core
4
CPU Frequency
2.2 GHz
Hardware Encryption Engine
Yes(AES-NI)
Memory
System Memory
4 GB DDR4 ECC SODIMM
Memory Module Pre-installed
4 GB (4 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Storage
Drive Bays
4
Maximum Drive Bays with Expansion Unit
9 (DX525 x 1)
M.2 Drive Slots
2 (NVMe)
Drive Type
3.5″ SATA HDD
2.5″ SATA SSD
M.2 2280 NVMe SSD
Hot Swappable Drive
Yes
External Ports
RJ-45 1GbE LAN Port
2
USB 3.2 Gen 1 Port
2
Expansion Port
1
Expansion Port Type
USB Type-C
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
File Protocol
SMB
AFP
NFS
FTP
WebDAV
Rsync
Others
System Fan
92 mm x 92 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Noise Level
20.5 dB(A)
Power Supply Unit / Adapter
100 watts
Power Consumption
37.91 watts (Access)
12.33 watts (HDD Hibernation)
AC Input Power Voltage
100V to 240V AC
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC

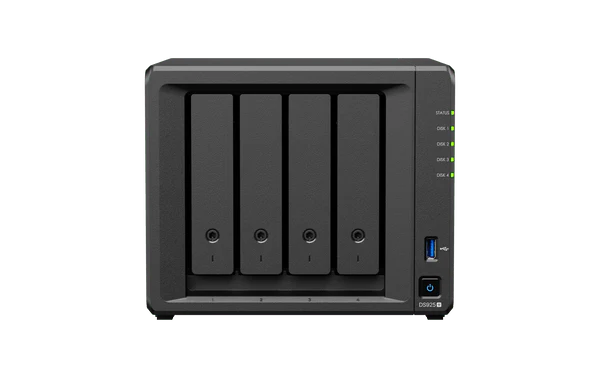

Ports
Status Indicator
Drive Status Indicators
Drive Tray Lock
USB 3.2 Gen 1 Port
Power Button and Indicator
Drive Trays
Fans
2.5GbE RJ-45 Ports
Reset Button
USB 3.2 Gen 1 Port
Power Port
Expansion Port
Kensington Security Slot
M.2 NVMe SSD Slots
Miscellaneous
Dimensions(Height x Width x Depth)
166 mm x 199 mm x 223 mm
Net Weight
2.26Â kg
Warranty
3 Year Brand Warranty
Package Contents
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
